Figure 4 MED-AMB 10 (1 L) - Price & Specs

3D Systems

Resin Tray Kit - Figure 4 - 3D Systems

Request quotation

You will hand-pour resin into the resin tray before printing. The Figure 4 Standalone Printer comes with one resin tray per machine purchased. Purchasing multiple resin trays gives the user the ability to easily print with two different materials on one machine. The more resin trays you have, the more materials you can print with. If the resin tray is sufficiently cleaned in between builds, it is also possible to use a different print material in the same resin tray. However, not every resin can share the same tray, even if the resin tray is cleaned. Determine the number of resin trays you will require.

3D Systems

Print Platforms - Figure 4 - 3D Systems

Request quotation

A Print Surface - Faces downward when printing. The printed part adheres to the holes in the print surface on the underside of the platform. B Alignment Grooves - The flat surfaces of the platform are held to the elevator arms magnetically. The triangular grooves fit over the conical pins on the elevator arms. C QR Code/Serial Number - The QR Code has the serial number embedded in its pattern. These give the print platform a unique identification that can be read by a QR-code scanner.

3D Systems

Figure 4 Resin Cartridge TOUGH-GRY 15 - 3D Systems

Request quotation

Figure 4 TOUGH-GRY 15 is designed to offer high strength and stability for production applications. Economical pricing allows short run production parts to be produced at a fraction of the cost of traditional methods. With 35% elongation at break, this durable opaque gray material produces highly accurate components for consumer goods, aerospace and automotive industries, with digital molding productivity and cost-efficiency. Download here Brochure

3D Systems

Figure 4 Resin Cartridge TOUGH-GRY 10 - 3D Systems

Request quotation

Tough and Durable A HIGH-SPEED MATERIAL CAPABLE OF PRINT SPEEDS UP TO 100 MM/HOUR FOR THE PRODUCTION OF STRONG RIGID GRAY PARTS IN A FRACTION OF THE TIME. WITH 25% ELONGATION AT BREAK, IT HAS THE DURABILITY REQUIRED FOR A BROAD RANGE OF APPLICATIONS. Figure 4 TOUGH-GRY 10 is capable of print speeds up to 100 mm/hour in a strong production plastic. With 25% elongation at break, it has the durability required for a broad range of applications. This dark gray plastic material is extremely stable, including under high humidity conditions. Download here Brochure

3D Systems

Figure 4 Resin Cartridge TOUGH-BLK 20 - 3D Systems

Request quotation

Superior surface finish and long-term environmental stability Figure 4 TOUGH-BLK 20 is a strong black plastic simulating injection-molded ABS, with long-term environmental stability for fast high-performance prototyping and production applications where lifecycle stability is critical and mechanical properties fit. With production-grade indoor and outdoor environmental stability, mechanical properties, color, opacity, dimensions will not change over time with exposure to daylight. This material provides high precision, smooth surface finish and exceptional sidewall quality with minimal finishing. Download Brochure here

3D Systems

Figure 4 Resin Cartridge Rigid White - 3D Systems

Request quotation

Save on Tooling Costs and Time with Direct Production Plastic Parts Figure 4 Rigid White is a production-grade opaque white material that provides long-term environmental stability and long-lasting, clean white color. This material is recommended for use in medical, consumer goods, and industrial manufacturing applications, and other applications where a smooth surface finish, long-term indoor and outdoor stability, and biocompatible capability are needed. This resin exhibits thermoplastic behavior with necking at break, making it ideal for snap-fit applications. It also features 65°C heat deflection temperature and high elongation at break. Fast print speeds and simplified post-processing enable exceptional throughput.

3D Systems

Figure 4 Resin Cartridge RUBBER-BLK 10 - 3D Systems

Request quotation

High Tear Strength with Long Term Environmental Stability for Hard Rubber-Like Parts Figure 4 RUBBER-BLK 10 is a high tear strength material for the production of hard rubber-like parts with slow-rebound for touch applications such as grips, handles and bumpers, as well as strain-relief applications, couplings, over molds, etc. This extremely tough material has an exceptional surface finish and long-term environmental stability. Download Brochure here

3D Systems

Figure 4 Resin Cartridge RUBBER-65A BLK - 3D Systems

Request quotation

Manufacture rubber parts with production performance properties with this mid-tear strength, high elongation at break and Shore 65A hardness material. A mid-tear strength, production-grade rubber combined with Shore 65A hardness and a high elongation at break Figure 4 RUBBER-65A BLK material is specially formulated to address key customer needs for rubber parts featuring production performance properties and production mechanical properties, in the light of specifications tested according to industry standards. Figure 4 RUBBER-65A BLK is a mid-tear strength material for the production of medium hard rubber parts with slow rebound, for applications such as grips, handles, gaskets, bumpers, seals, vibration dampening components and more. Download Brochure here

3D Systems

Figure 4 Resin Cartridge PRO-BLK 10 - 3D Systems

Request quotation

Versatile Rigid Heat-Resistant Material Combines Speed, Strength, Excellent Mechanical Properties for Tool-Less, Direct Production of Plastic Parts Figure 4 PRO-BLK 10 delivers on the promise of additive manufacturing with true direct digital production of plastic parts. Go from CAD to manufacturing line in one day with tool-less, same day part production. With a fast print speed and simplified post-processing that includes a single curing cycle and single solvent cleaning, this material delivers exceptional throughput. It is a high precision resin producing parts with a smooth surface finish and sidewall quality, and has excellent mechanical properties and long-term environmental stability that brings a new level of assurance to 3D production. Download here Brochure

3D Systems

Figure 4 Resin Cartridge PRO-BLK 10 - 3D Systems

Request quotation

Versatile Rigid Heat-Resistant Material Combines Speed, Strength, Excellent Mechanical Properties for Tool-Less, Direct Production of Plastic Parts Figure 4 PRO-BLK 10 delivers on the promise of additive manufacturing with true direct digital production of plastic parts. Go from CAD to manufacturing line in one day with tool-less, same day part production. With a fast print speed and simplified post-processing that includes a single curing cycle and single solvent cleaning, this material delivers exceptional throughput. It is a high precision resin producing parts with a smooth surface finish and sidewall quality, and has excellent mechanical properties and long-term environmental stability that brings a new level of assurance to 3D production. Download here brochure

3D Systems

Figure 4 Resin Cartridge MED-WHT 10 - 3D Systems

Request quotation

Figure 4 MED-WHT 10 is a rigid, white material for a range of medical and industrial applications, including when biocompatibility, sterilization and/or thermal resistance is required. Capable of meeting ISO 10993-5 and -10 standards for biocompatibility (cytotoxicity, sensitization and irritation), this material can also be sterilized by autoclave. It delivers highly accurate parts with excellent feature resolution and high definition. *Biocompatibility is based on testing by 3D Systems on a single geometry and sample set per ISO 10993-5 and -10. Users should confirm fitness for use and biocompatibility for their applications. Download Brochure here

3D Systems

Figure 4 Resin Cartridge JEWEL MASTER GRY 1kg - 3D Systems

Request quotation

A versatile, high HDT master pattern material for jewelry silicone molds and high visualization detailed prototypes of complex and fine designs. Stunning surface finish and high definition for jewelry pieces prototyping and production with RTV/silicone molding. Figure 4 JEWEL MASTER GRY is a versatile master pattern material for high volume jewelry RTV/silicone molds and for prototype/fit models. The material’s high heat deflection temperature (300°C) ensures compatibility with a range of silicones for creating molds used in jewelry casting production workflows. This material also delivers exceptional precise surface quality for design and functional prototyping, as well as snap-fit and stone-in-place testing. Figure 4 JEWEL MASTER GRY meets biocompatibility standard ISO 10933-5 for cytotoxicity, making it safe for try-ons and fittings. Download here Brochure

3D Systems

Figure 4 Resin Cartridge JCAST-GRN 10 - 3D Systems

Request quotation

OPTIMIZED FOR CLEAN AND EASY BURNOUT FOR DIRECT CASTING, THIS HIGH CONTRAST GREEN CASTABLE MATERIAL DELIVERS FINELY DETAILED, HIGH-RESOLUTION JEWELRY PATTERNS TO PRODUCE HIGH QUALITY JEWELRY PIECES RAPIDLY. Designed for the jewelry casting professional, Figure 4 JCAST-GRN 10 produces accurate, reproducible, and highly detailed master patterns for jewelry casting. This high contrast green material is easy to cast with minimal ash and residue, producing high-quality jewelry pieces rapidly. Download here Brochure

3D Systems

Figure 4 Resin Cartridge HI TEMP 300-AMB - 3D Systems

Request quotation

High Thermal-Resistance, Translucent Amber Plastic for Flow Visualization (HDT >300 °C) Figure 4 HI TEMP 300-AMB is an ultra-high temperature plastic for use in applications requiring high heat resistance. With heat deflection temperature of over 300 °C at both low and high stress (HDT at 0.455 and 1.82 MPa), this material is well suited for the testing of high temperature components in applications including HVAC, consumer appliances, motor enclosures, stators, molds and the like. It does not require a secondary thermal post-cure. Download Brochure here

3D Systems

Figure 4 Resin Cartridge FLEX-BLK 20 - 3D Systems

Request quotation

Fatigue Resistant Black Plastic, with the Look and Feel of Production Polypropylene Figure 4 FLEX-BLK 20 is a flexible, high impact-resistant material for extremely durable black parts with the look and feel of production polypropylene. Great for functional prototypes, enclosures and assemblies, as well as short-run production parts, this fatigue resistant material provides outstanding flexibility and accuracy, enabling many applications.

3D Systems

Figure 4 Resin Cartridge FLEX-BLK 10 - 3D Systems

Request quotation

Figure 4 FLEX-BLK 10 is a durable and flexible material that allows users to produce the toughest 3D printed parts with the look and feel of molded polypropylene. With amazing elongation at break and impact strength, this robust material provides outstanding flexibility and accuracy for a wider variety of prototyping, functional testing and low volume production applications. In fact, in unnotched Izod impact strength testing to ATSM standards, the Figure 4 FLEX-BLK 10 material did not break. Download here brochure

3D Systems

Figure 4 Resin Cartridge ELAST-BLK 10 - 3D Systems

Request quotation

ELASTOMERIC A rubber-like material for accelerated designing and prototyping of a wide variety of elastomeric products for industrial and consumer goods applications. This black elastomeric material offers excellent compressive characteristics Figure 4 ELAST-BLK 10 is a material suited for the prototyping and design of a wide variety of elastomeric parts. Producing parts in a fraction of the time required to produce molded parts, this material accelerates the design and iteration of new concepts with rubber-like functional prototypes for industrial and consumer goods applications.

3D Systems

Figure 4 Resin Cartridge EGGSHELL-AMB 10 - 3D Systems

Request quotation

Rigid Plastic to Create Sacrificial Tooling that Withstands Silicone Injection at High Temperature and Pressure, but Breaks away Easily Figure 4 EGGSHELL-AMB 10 is process-optimized for the production of sacrificial tooling for casting silicone parts in any durometer. It is specifically engineered to withstand liquid silicone injection at high temperature and pressure, with intentional brittleness to shatter easily from silicone once the mold is filled and cooled. Its amber color allows for visualization of the injected silicone, and it also has high heat deflection temperature, high tensile modulus and low elongation at break which are preferred properties for molds to be injectable. Download Brochure here

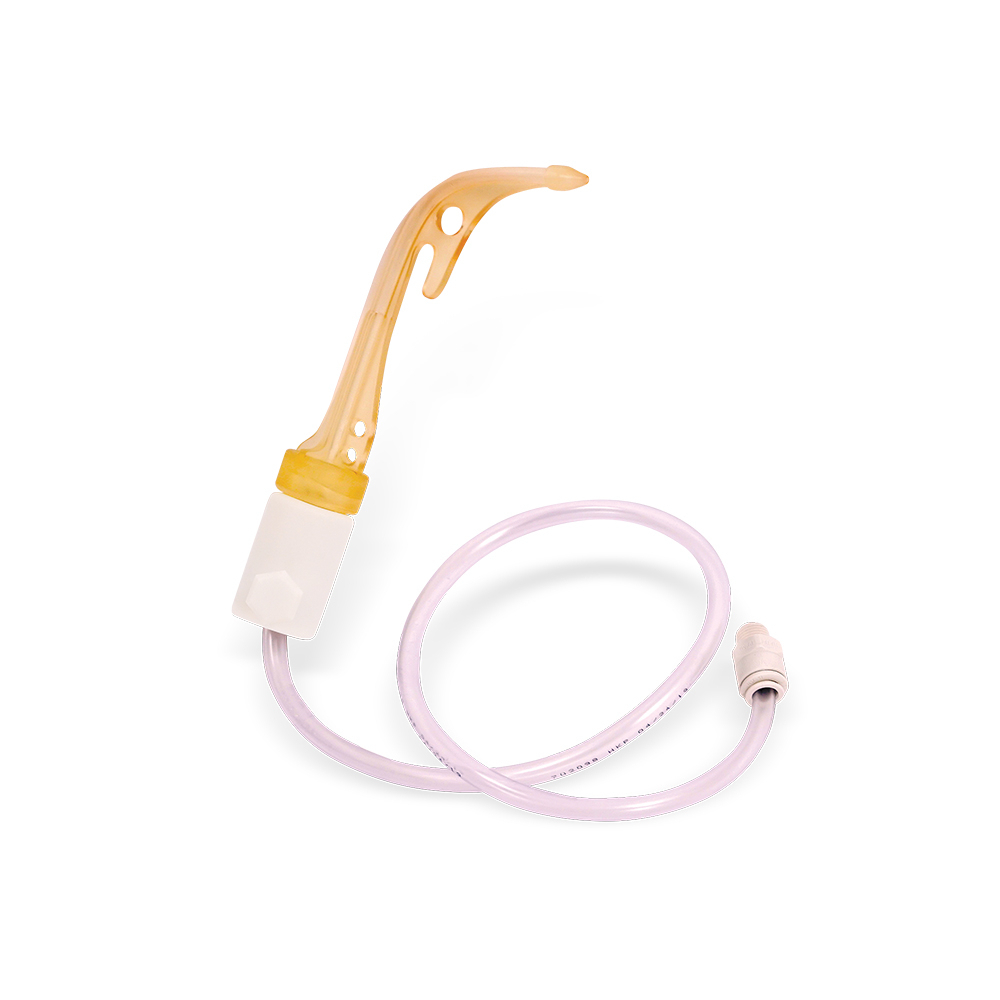

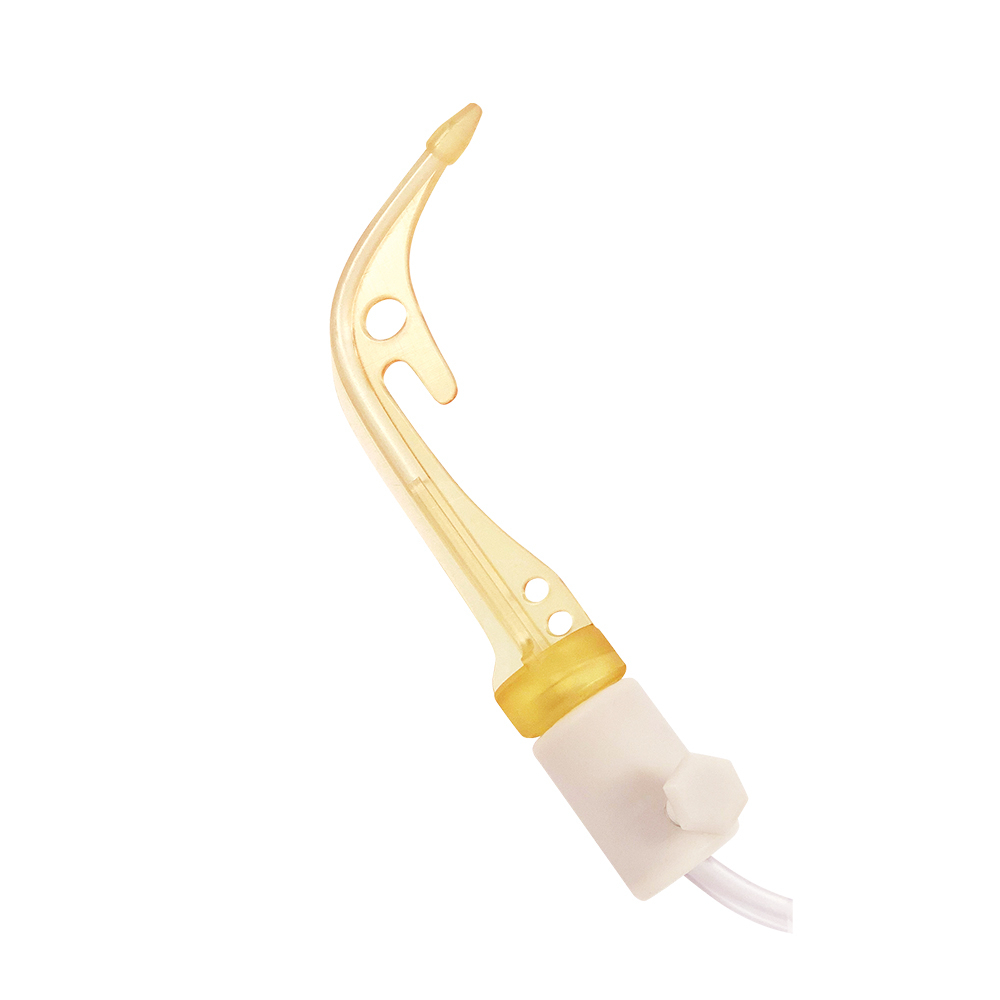

Figure 4 Resin Cartridge MED-AMB 10 - 3D Systems

Applications

Benefits

Features

Key Material Properties

Isotropic properties
