3D Systems

Figure 4 Resin Cartridge EGGSHELL-AMB 10 - 3D Systems

SKU 420128-901

Size

The item has been added to your cart

Go to cart

You have reached the maximum quantity that can be added to the cart

Go to cart

Rigid Plastic to Create Sacrificial Tooling that Withstands Silicone Injection at High Temperature and Pressure, but Breaks away Easily

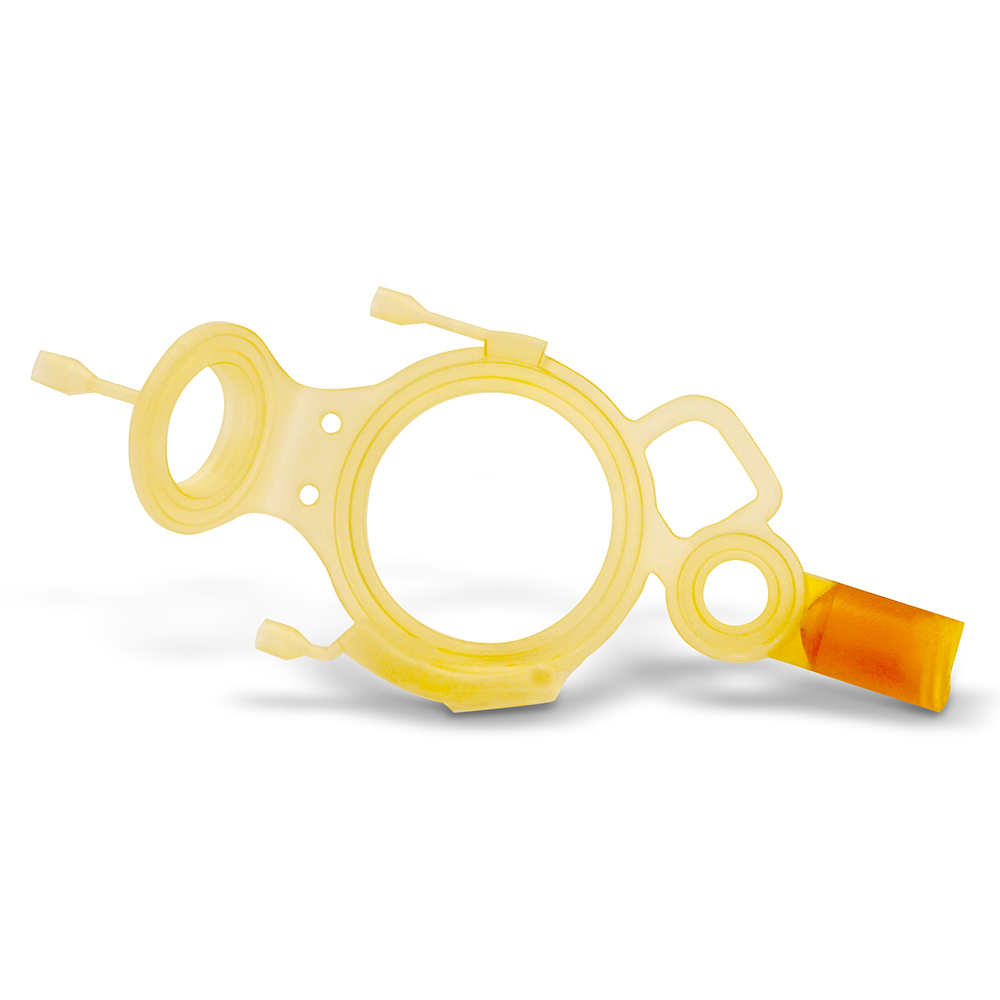

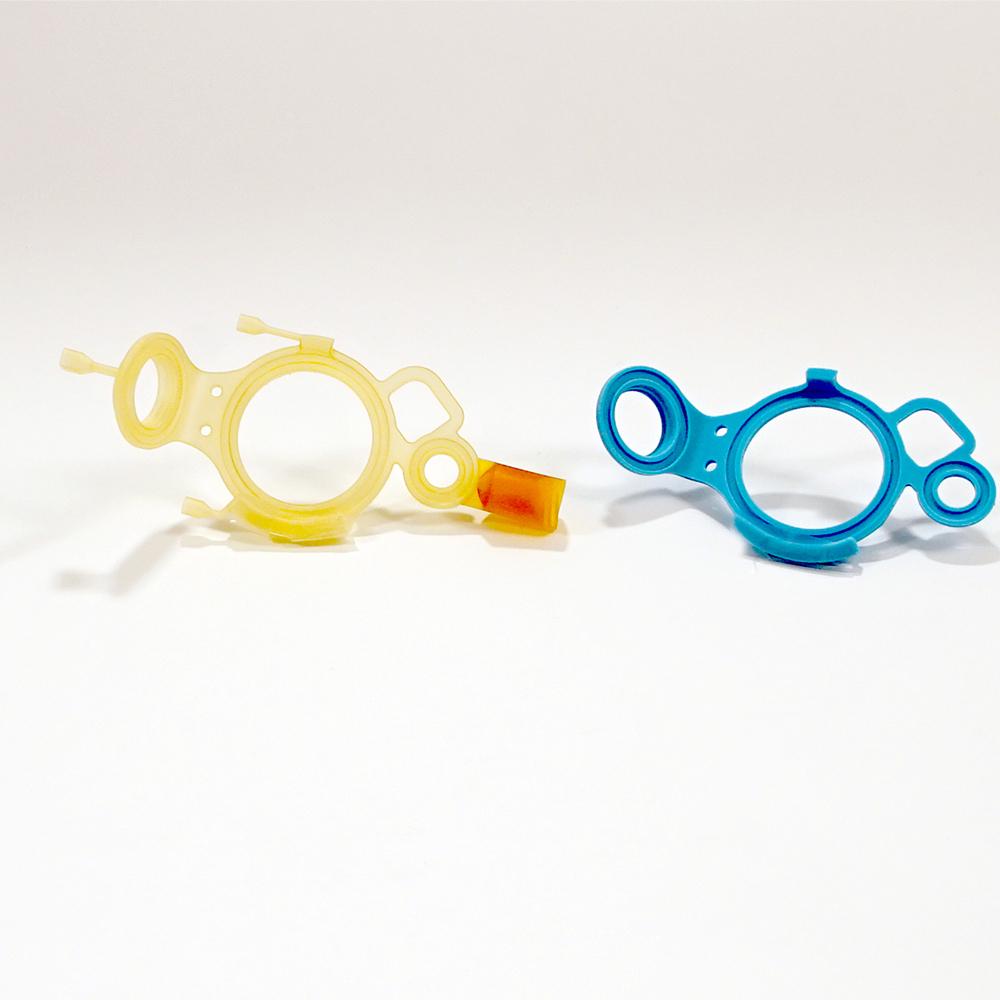

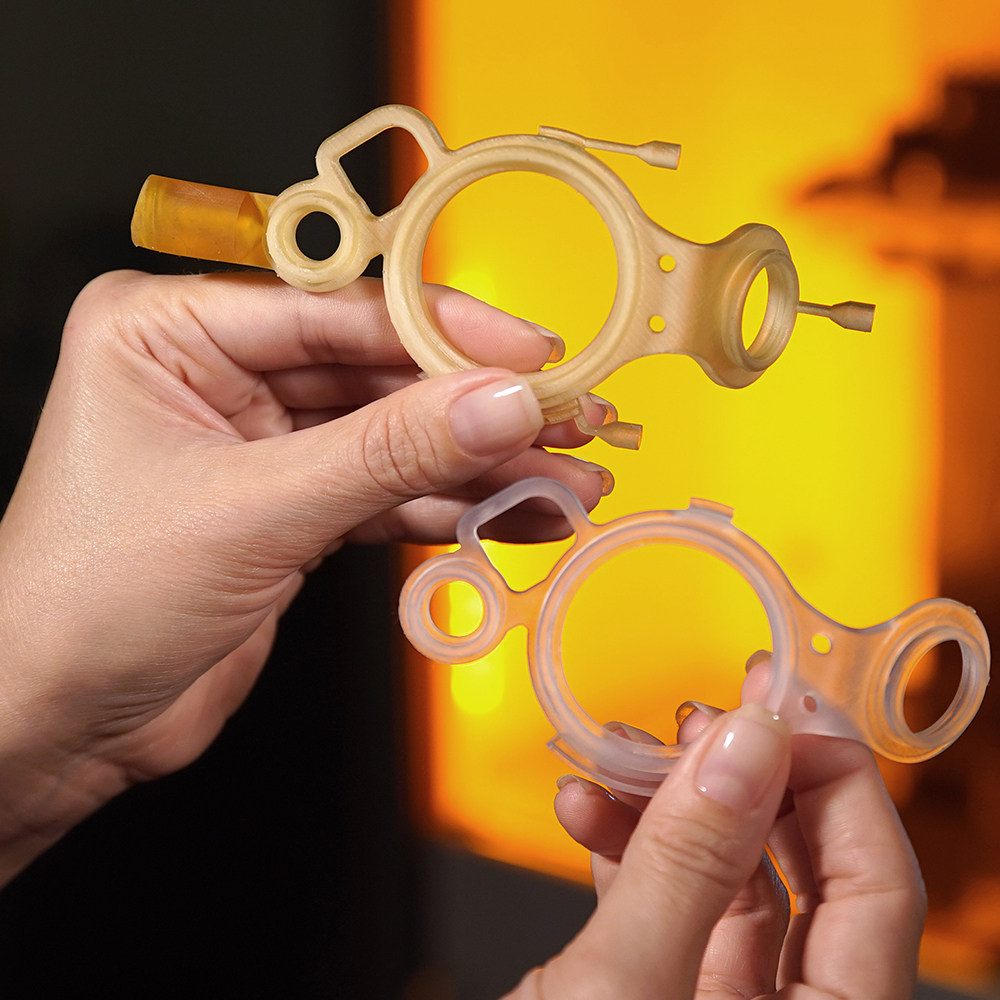

Figure 4 EGGSHELL-AMB 10 is process-optimized for the production of sacrificial tooling for casting silicone parts in any durometer. It is specifically engineered to withstand liquid silicone injection at high temperature and pressure, with intentional brittleness to shatter easily from silicone once the mold is filled and cooled. Its amber color allows for visualization of the injected silicone, and it also has high heat deflection temperature, high tensile modulus and low elongation at break which are preferred properties for molds to be injectable.

Download Brochure here


Material Type: Figure 4
Application: Prototyping

Applications

  • For casting silicone parts in any durometer
  • Customized end-use and low volume production parts of silicone material
  • High quality prototypes quickly produced

Benefits

  • Fine feature detail and digital textures applied to the sacrificial tooling for textured silicone parts
  • Digital tooling for complex geometries
  • End product can be cast with many silicones
  • Material translucency allows for visualization during injection

Features

  • High HDT, high tensile modulus and low elongation at break
  • Translucent, amber color
  • Withstands silicone injection at high temperature and pressure, but intentionally brittle to break away easily

Key Mechanical Properties

  • Elongation at break: 5%
  • Tensile modulus: 2765 MPa
  • Impact strength (notched Izod): 15 J/m
  • Heat Deflection Temperature @ 0.455 MPa: 89°C
